How to use Excel Top/Bottom Rules in MS Excel.

Top/Bottom Rules

Top/Bottom Rules are premade types of conditional formatting in Excel used to change the appearance of cells in a range based on your specified conditions.

Here is the Top/Bottom Rules part of the conditional formatting menu:

Appearance Options

The web browser version of Excel offers the following appearance options for conditionally formatted cells:

• Light Red Fill with Dark Red Text
• Yellow Fill with Dark Yellow Text
• Green Fill with Dark Green Text
• Light Red Fill
• Red Text
• Red Border

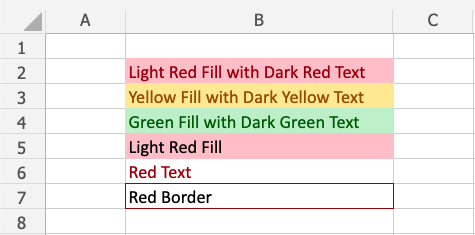

Here is how the options look in a spreadsheet:

Top/Bottom 10 Items Example

The “Top 10 Items…” and “Bottom 10 Items…” rules will highlight cells with one of the appearance options based on the cell value being the top or bottom values in a range.

You can choose any rang  for where the Highlight Cell Rule should apply. It can be a few cells, a single column, a single row, or a combination of multiple cells, rows and columns.

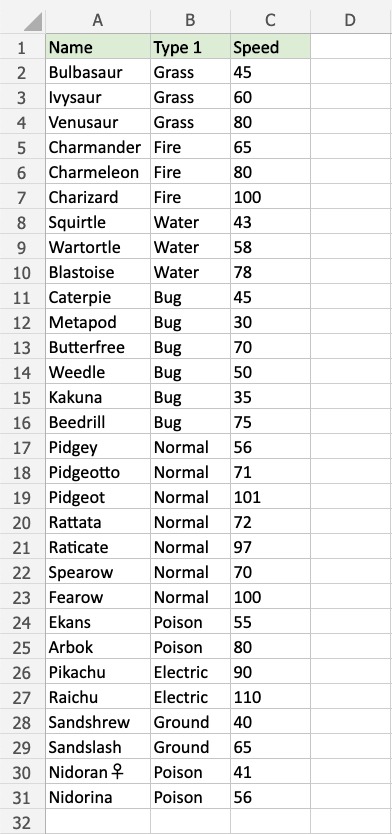

Let’s first apply the Top 10 Items… rule to the Speed values.

“Top 10 Items…” Rule, step by step:

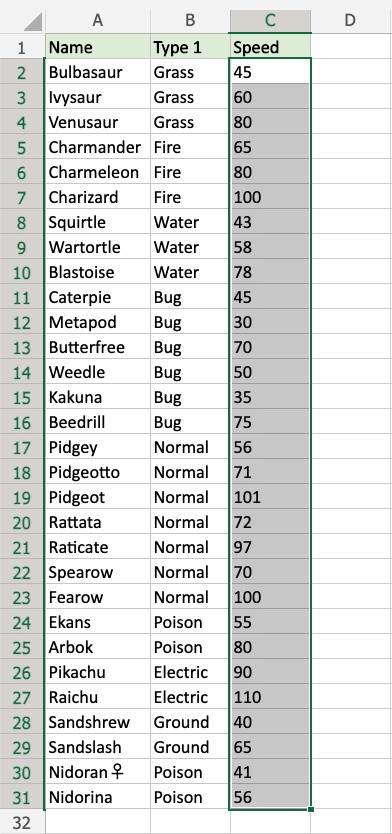

Select the range C2:C31 for Speed values.

2. Click on the Conditional Formatting icon  in the ribbon, from Home menu
3. Select Top/Bottom Rules from the drop-down menu

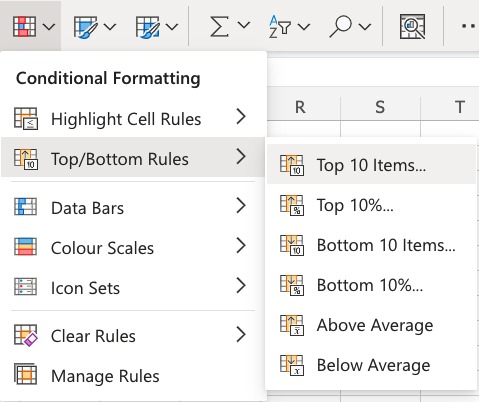

4. Select Top 10 Items… from the menu

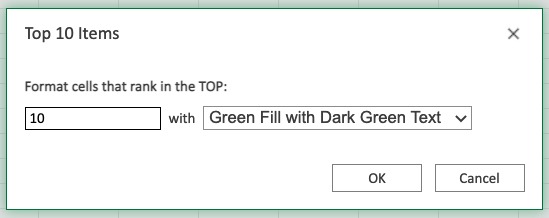

This will open a dialog box where you can specify the value and the appearance option.

5. Leave the default value 10 in the input field
6. Select the appearance option “Green Fill with Dark Green Text” from the dropdown menu.

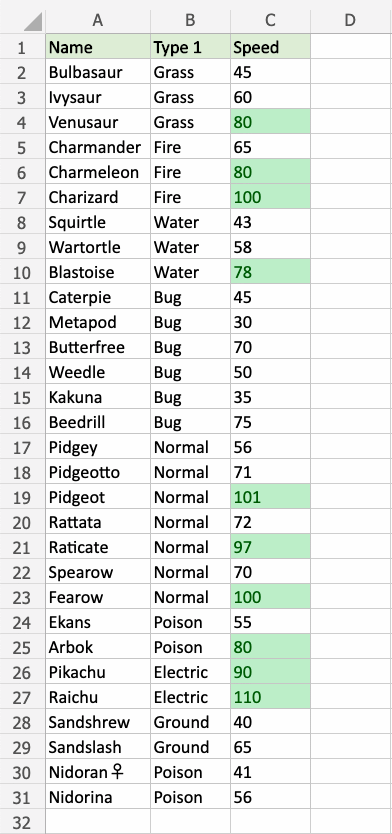

Now, the 10 cells with the top values will be highlighted in green:

the top 10 Speed values are easily identified.

Let’s try the same with the bottom 10 Speed values.

Repeat the steps, but instead choose Bottom 10 Items… in the menu and select the “Light Red Fill with Dark Red Text” appearance option.

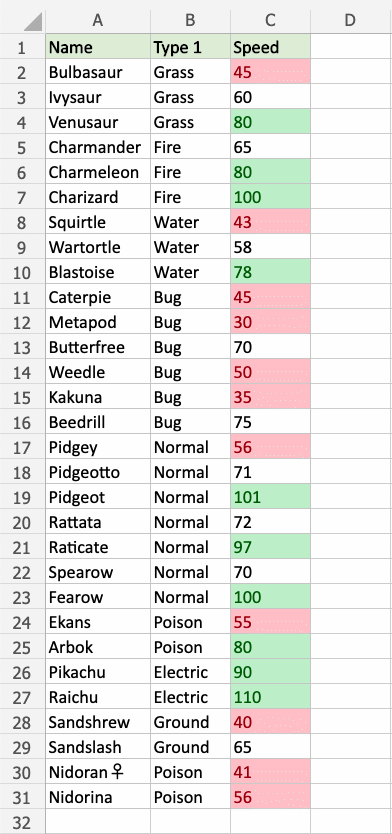

Now, the slowest values are also highlighted:

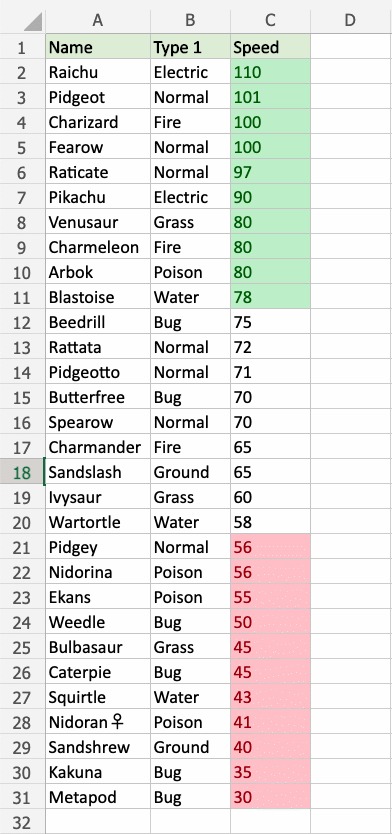

 that there are actually 11 items highlighted in red.

We can see that both Pidgey and Nidorina have a Speed of 56. So, they are tied for the 10th bottom value.

Above and Below Average Rules

Above and Below Average Rules are premade types of conditional formatting in Excel used to change the appearance of cells in a range based on your specified conditions.

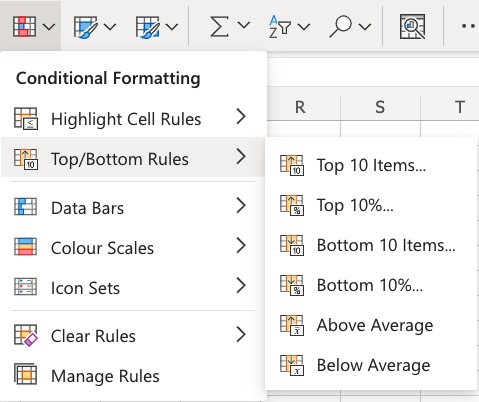

Above and Below Average Rules are found in the Top/Bottom Rules part of the conditional formatting menu:

Appearance Options

The web browser version of Excel offers the following appearance options for conditionally formatted cells:

• Light Red Fill with Dark Red Text
• Yellow Fill with Dark Yellow Text
• Green Fill with Dark Green Text
• Light Red Fill
• Red Text
• Red Border

Above and Below Average Example

The “Above Average” rule will highlight cells with one of the appearance options based on the cell value being the above the average value in a range.

You can choose any range for where the Highlight Cell Rule should apply. It can be a few cells, a single column, a single row, or a combination of multiple cells, rows and columns.

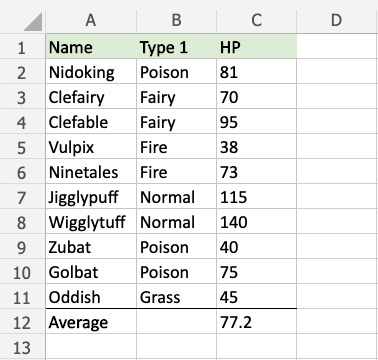

Let’s first apply the Above Average rule to the HP values.

“Above Average” Rule, step by step:

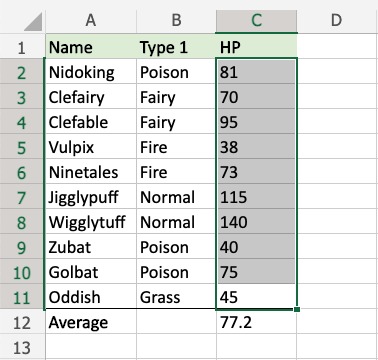

1. Select the range C2:C11 for HP values

2. Click on the Conditional Formatting icon  in the ribbon, from Home menu
3. Select Top/Bottom Rules from the drop-down menu

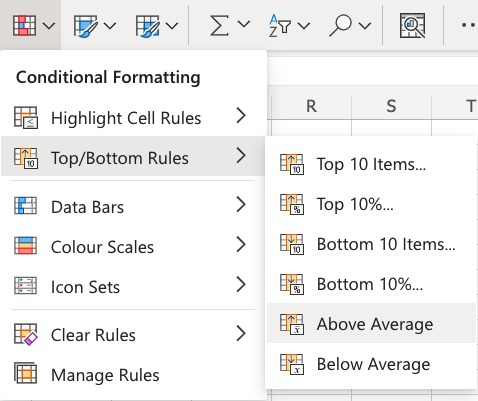

4. Select Above Average from the menu

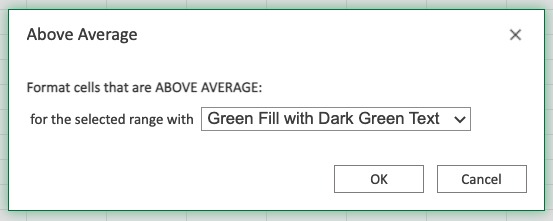

This will open a dialog box where you can specify the value and the appearance option.

5.Select the appearance option “Green Fill with Dark Green Text” from the dropdown menu.

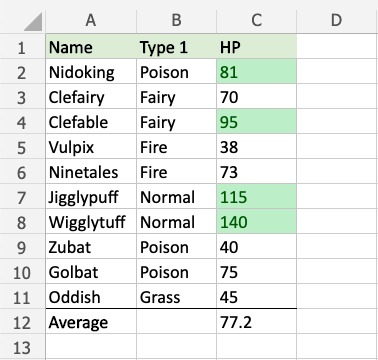

Now, the cells with above average HP values (more than 77.2) will be highlighted in green:

Let’s try the same with the below average HP values.

Repeat the steps, but instead choose Below Average in the menu and select the “Light Red Fill with Dark Red Text” appearance option.

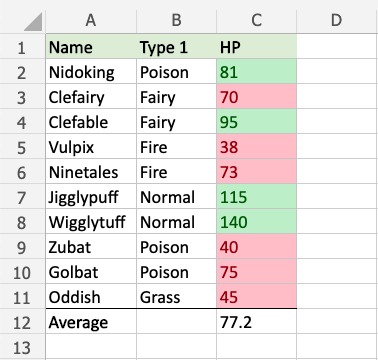

Now, the below average values are also highlighted:

Notice that there are more below average values than above average values. Why could this be?

The number of above or below average value cells in a range will depend on the actual values in the range.

If some values in the range are extra large this will increase the average by a lot.

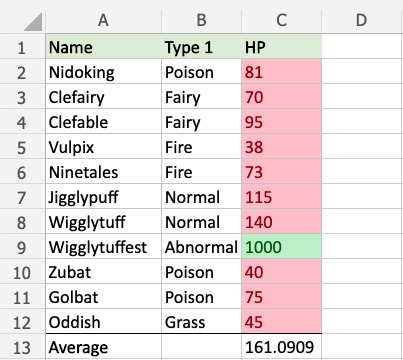

Let’s add a fictional Pokemon with a very high HP stat value to illustrate this:

The fictional Wigglytuffest has 1000 HP, which increases the average value all the way up to more than 161.

Now, only Wigglytuffest has an above average HP stat value, and every other Pokemon has below average HP stat values.
